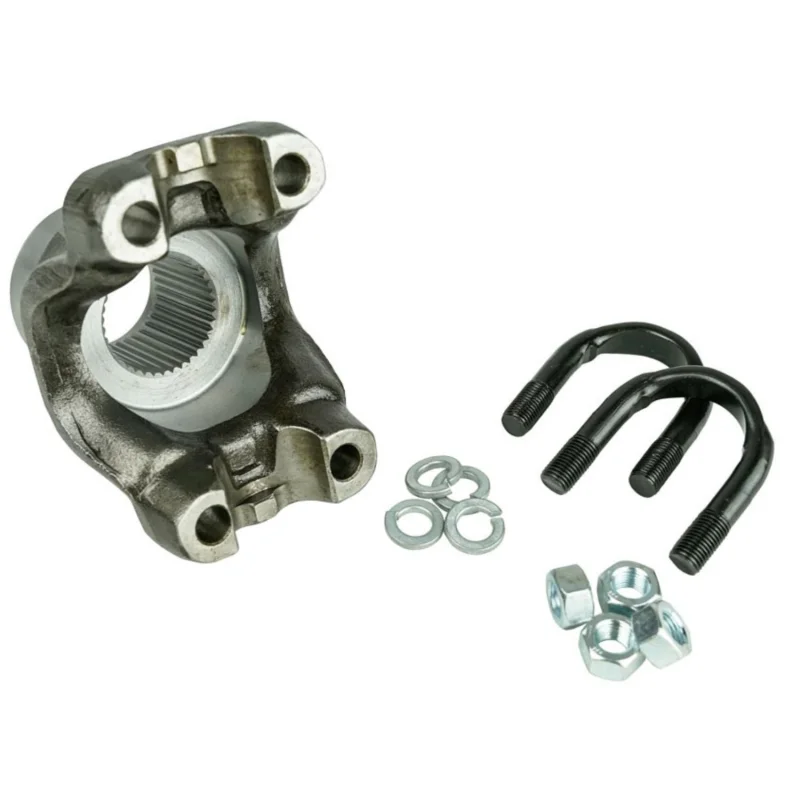

The 1480 Dana 80 Forged U-Bolt Yoke is built for strength, serviceability, and durability under extreme off-road or heavy duty conditions. Designed for the Dana 80 axle, this yoke uses U-bolts instead of straps, making field repairs easier and faster. Forged construction ensures superior structural integrity and reliability for demanding torque loads.

Includes:

• (1) 1480 Dana 80 Forged U-Bolt Yoke
• (2) U-Bolts (with Nuts and Lock Washers)

Specifications

• U-Joint Series: 1480
• Spline Count: 37
• Spline Pressure Angle: 45
• Ground Hub Diameter: 2.500
• Length Thru Bore: 2.000
• Centerline of Joint to End of Spline: 4.231
• Universal Joint Retaining Width: 4.188
• Universal Joint Bearing Diameter: 1.375
• Joint Angle: 30

Fitment

• Fits Dana 80 axle assemblies utilizing a 1480 series U-joint.

Tech Insight

This yoke design uses U-bolts instead of straps to simplify maintenance in the field. If a U-joint fails, simply replace the U-boltsno more dealing with broken strap bolts stuck in the yoke. The forged construction provides exceptional strength and impact resistance compared to cast or billet alternatives, making it the preferred choice for off-roaders and builders pushing the limits of their drivetrain.
