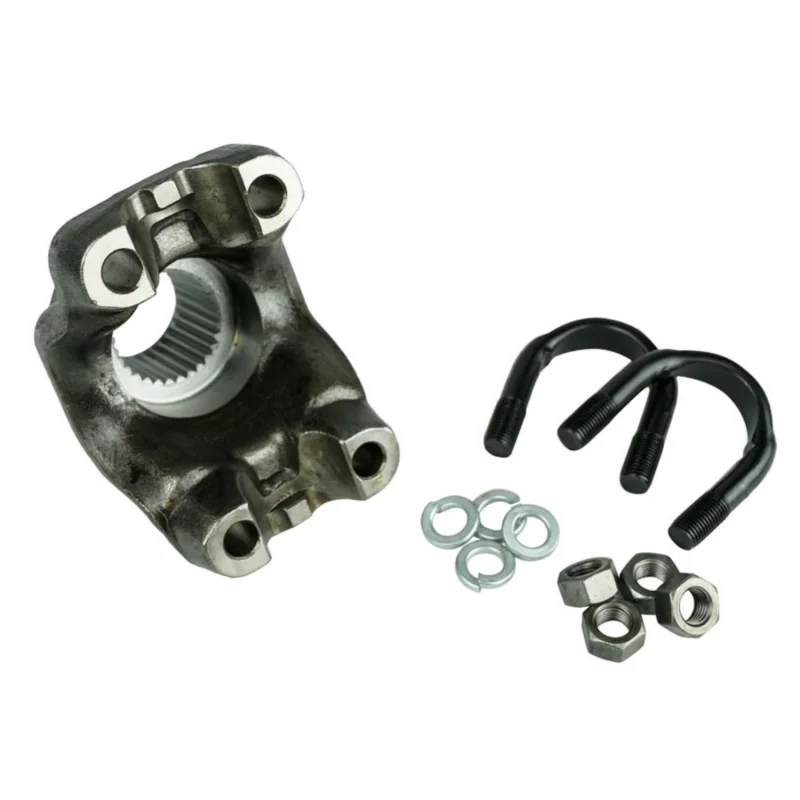

Designed for the GM 14 Bolt 10.5" ring gear axle and compatible with AAM 10.5" and 11.5" axles, this 1480 GM 14 Bolt Forged U-Bolt Yoke delivers unmatched durability and ease of service. Unlike strap-style yokes, which can create major headaches when bolts snap off inside the yoke, this design uses U-boltsmaking maintenance and repairs quick and simple.
Includes:
Specifications
| Specification | Detail |
|---|---|
| U-Joint Series | 1480 |
| Spline Count | 30 |
| Spline Pressure Angle | 37.5 |
| Ground Hub Diameter | 2.200 |
| Length Thru Bore | 1.625 |
| Centerline of Joint to End of Spline | 4.250 |
| Universal Joint Retaining Width | 4.188 |
| Universal Joint Bearing Diameter | 1.375 |
| Joint Angle | 26 |
Fitment
Tech Insight
Forged yokes provide superior strength and resilience compared to cast or billet options, thanks to their refined grain structure and reduced internal voids. The use of U-bolts ensures quick field serviceabilityideal for trail repairs, racing environments, and high-torque off-road applications where downtime isnt an option. This yoke is built to withstand the extreme torsional loads encountered in heavy off-road use, making it a trusted choice for builders running large 1480 joints.
