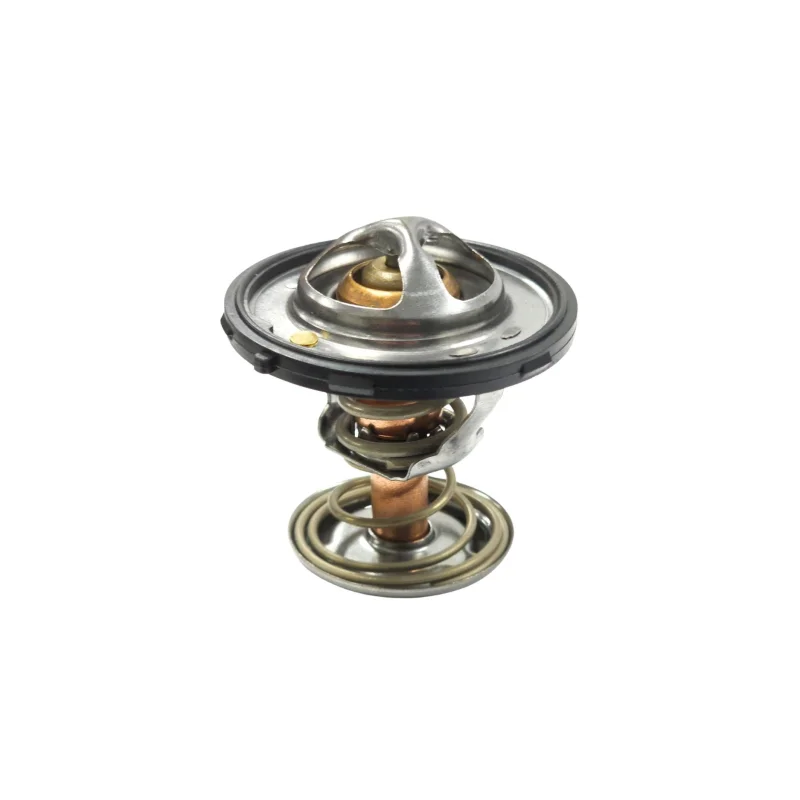

Maintain optimal engine performance with this 160 Degree Engine Coolant Thermostat, engineered for precise temperature control and long term durability. Built with high-grade dual bridge stainless steel construction, a copper casing, and a premium wax compound actuator, this thermostat delivers fast response times and reliable operation in demanding conditions.

A channel constructed stainless steel spring frame ensures consistent compression and operating accuracy, while integrated bleed notches and jiggle pin weep hole assist with air evacuation during cooling system fill and operation.

Its the perfect match for our WA01000LS or WA01000LT -16 LS Thermostat Housing and WA01001LS-20 LS Thermostat Housing.

Includes:

• (1) 160 Thermostat
• (1) Rubber Seal

Specifications

• Temperature Rating: 160 F
• Bypass Diameter: 1.46 in
• Bypass Length: 1.84 in
• Flange Thickness: 0.05 in
• Sealing Flange Outside Diameter: 2.13 in
• Seal Included: Yes
• Seal Material: Rubber
• Number of Seals: 1
• Jiggle Pin / Weep Hole: Yes
• Installation Tool Included: No
• Construction: Stainless Steel & Copper
• Testing: 100% Tested & Calibrated

Fitment

Direct replacement for applications requiring a 160 thermostat matching the above dimensions.

Note: Always verify bypass diameter, flange OD, and overall fitment before installation.

Tech Insight

A 160 thermostat is commonly used in performance and off-road builds where lower operating temperatures are preferred, especially in:

• High compression engines
• Forced induction setups
• Slow speed rock crawling applications
• Heavy load towing or trail rigs

Proper thermostat selection helps maintain stable engine temps, especially in builds where airflow is limited or under heavy load conditions.
