The ARB Air Locker Differential for AMC Model 20 usesa pneumatically operated locking system, the lockable differential completely locks the differential when activated, preventing internal gears from rotating independently. This forces both axle shafts to turn together, delivering maximum traction in rocks, mud, snow, and uneven terrain. When switched off, the differential functions like a conventional open unit, making it ideal for mixed street and trail use.

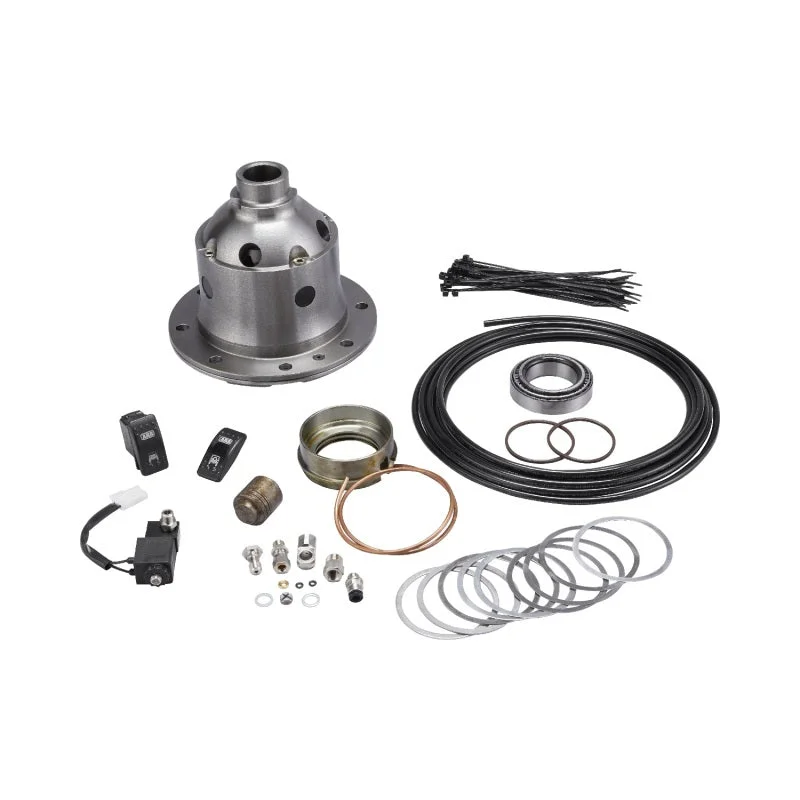

Kit Includes:

• ARB AMC Model 20 Air Locker Differential
• Dash activation switch
• Solenoid valve
• Air line
• Bulkhead fitting

Note: Air compressor required for operation (sold separately).

Specifications

• Differential Type: Selectable Air Locker
• Axle Type: AMC Model 20
• Material: Steel
• Design: Two-piece carrier
• Activation: Pneumatic (air-operated)

• Front Axle (IFS AMC 20)

  • Axle: AMC 20 (8.875")
  • Position: Front
  • Spline: 29
  • Shaft Diameter: 1.25"
  • Gear Ratios Supported:
  • 2.73 & Down
  • 3.08 & Up

  Rear Axle (IRS AMC 20)

  • Axle: AMC 20 (8.875")
  • Position: Rear
  • Spline: 29
  • Shaft Diameter: 1.25"
  • Gear Ratios Supported:
  • 2.73 & Down
  • 3.08 & Up

  Rear Axle (Model 20 Solid Axle)

  • Axle: AMC Model 20
  • Position: Rear
  • Spline: 29
  • Shaft Diameter: 1.25"
  • Gear Ratios Supported:
  • 2.73 & Down

  Note: Gear ratio breaks are carrier-specific. Always verify your current ratio before ordering.

Fitment

Tech Insight

ARBs patented timed locking mechanism allows ultra fast disengagement under load, reducing driveline stress while maintaining exceptional strength. The two-piece carrier design minimizes internal moving parts for maximum reliability, while the steel is engineered to perform in extreme climates and harsh off-road conditions.
