The ARB Air Locker for Dana 44 axles with 30-spline shaftsallows engagement at any speed and reverts to a standard open differential when disengaged. With the simple flip of a switch, the Air Locker instantly locks both axle shafts together, providing maximum control and traction in extreme off-road conditions.

This results in safer, more controlled driving on-road while offering unmatched performance off-road.

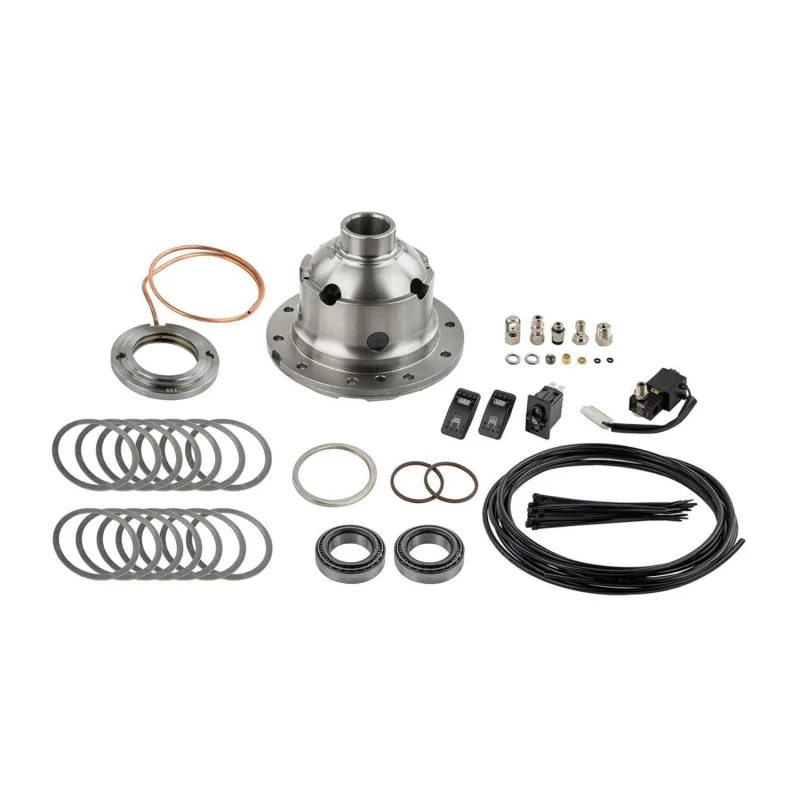

Includes:

• ARBDana 44 Air Locker differential
• Dash-mounted activation switch
• Solenoid valve
• Air line
• Bulkhead fitting
• Air compressor required for operation (sold separately)

Specifications

• Axle Type: Dana 44
• Spline Count: 30 Spline
• Gear Ratio Compatibility: 3.92 & Up
• Ring Gear Bolt Sizes Supported: 3/8, 7/16, 1/2 (modification may be required)
• Differential Case: One-piece nodular iron
• Operation: Pneumatically actuated selectable locker
• Material: Forged nickel alloy steel & nodular iron
• Prop 65: No

Fitment

• Dana 44 axles with 30-spline shafts
• Chrysler 8.25" applications using Dana 44-style internals

Important Notes:

• Newer OEM Chrysler 8.25" and Dana 44 ring gears may use 3/8", 7/16", or 1/2" ring gear bolts
• Air Locker flange holes must be drilled or reamed to suit 7/16" or 1/2" bolts when required

Tech Insight

ARBs Dana 44 Air Locker features a fully machined, one-piece nodular iron diff case that offers the rigidity of a factory carrier with twice the number of pinion gears to handle increased torque loads.

A long cross shaft made from alloy steel with advanced surface treatments provides exceptional durability under extreme load conditions. The steel-reinforced, elastomer-bonded annular seal is proven to withstand 20,000+ engagement cycles in the harshest environments on earth, ensuring long-term reliability in both trail and competition use.
