600 HP 530 lb-ft 427 c.i. 91+ Octane Dyno Tested 30-Month/50,000-Mile Warranty

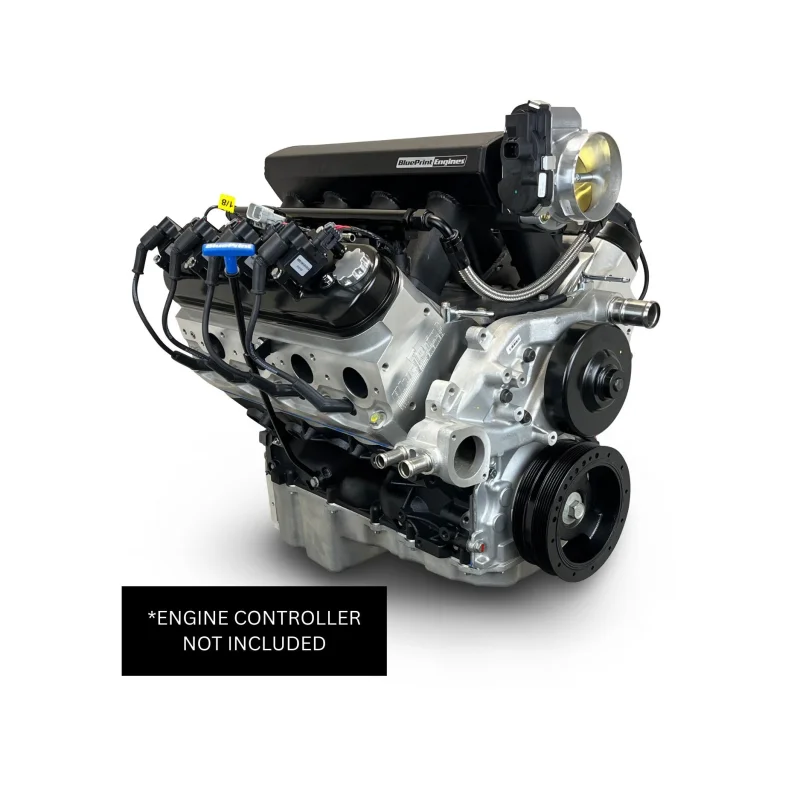

Built for serious builders who need big-cubic-inch LS power in a ready-to-complete package, this BluePrint Engines GM LS Compatible 427 Crate Engine delivers 600 horsepower and 530 lb-ft of torque. The increased 427 cubic inch displacement provides strong low-end torque and broad power delivery for high-performance off-road, street, racing, and custom vehicle applications.

At the foundation is a high-strength LSX-style cast iron block featuring increased deck thickness, reinforced webbing, extended cylinder skirts, priority main oiling, and six-bolt mains. A forged rotating assembly combines a 4.125-inch stroke crankshaft, forged 6.125-inch connecting rods, and forged pistons for the durability required in high-load and high-horsepower builds.

BluePrint LS3-style aluminum cylinder heads and an aggressive hydraulic roller camshaft help the engine produce strong airflow and power throughout the RPM range. The base-dressed configuration includes a fabricated aluminum LS3 intake manifold, drive-by-wire throttle body, fuel rails, injectors, coil packs, water pump, retro-fit oil pan, and other essential engine components.

The ECU and wiring harness are not included, allowing builders to select an engine management package that matches their transmission, vehicle wiring, tuning requirements, and overall build.

Need to confirm fitment or get an exact delivered price? Call or text our team before ordering.

Includes:

• BluePrint GM LS Compatible 427 Base-Dressed Crate Engine
• High-Strength LSX-Style Cast Iron Block
• BluePrint LS3 Aluminum Cylinder Heads
• BluePrint Fabricated Aluminum LS3 Intake Manifold
• Fuel Rails
• Drive-by-Wire Throttle Body
• 42 lb/hr Fuel Injectors
• Hydraulic Roller Camshaft
• Forged Crankshaft
• Forged Connecting Rods
• Forged Pistons
• Retro-Fit Oil Pan
• Water Pump
• Harmonic Balancer
• Timing Cover
• Valve Covers
• Coil Packs
• Spark Plugs
• Spark Plug Wires

Note: This engine does NOT include an ECU or engine controller, engine wiring harness, drive-by-wire accelerator pedal, flexplate or flywheel, front accessory drive system, alternator, power steering pump, air-conditioning compressor, exhaust headers, air intake system, transmission controller, or transmission.

Specifications

Block Features

• Increased deck thickness
• Reinforced strength webbing
• Extended cylinder skirts
• Improved water-jacket design
• Priority main oiling
• Six-bolt main construction
• One-piece rear main seal
• Compatible with OEM-style LS3 front and rear covers

Important Installation Notes

Built by Off-Road People, Supported by Off-Road People
Wide Open Design has more than 20 years of experience building LS-powered rock crawlers, trail rigs, race cars, and custom tube-chassis vehicles. We can help you match the engine with the correct cooling system, fuel delivery, transmission, drivetrain, and installation components for your build.

• Engine controller, ECU, and wiring harness are not included.
• A compatible aftermarket or OEM-style engine management system is required.
• This engine requires a non-weighted flexplate or flywheel.
• BluePrint Engines recommends a torque converter with a stall speed of 2,200 RPM or higher.
• The included retro-fit oil pan is intended to fit many 19551995 GM front-engine, rear-wheel-drive V8 vehicles. Off-road chassis and custom installations must be checked for oil-pan and axle clearance.
• This engine is not intended for dry-sump applications.
• This engine is not intended for use in pollution-controlled vehicles.
• Final horsepower can be affected by the ECU calibration, air intake, exhaust system, fuel system, accessories, and other installation components.
• Verify throttle pedal, fuel pressure, transmission control, accessory drive, exhaust, cooling system, and wiring compatibility before installation.

Best For

• High-horsepower rock bouncers
• Ultra4 and off-road race vehicles
• High-performance rock crawlers
• Prerunners and desert builds
• LS-swapped custom trucks
• Muscle cars and hot rods
• Pro-touring vehicles
• Builders who want naturally aspirated LS power
• Applications requiring strong low-end and midrange torque
• Custom builds using an aftermarket ECU and wiring system
