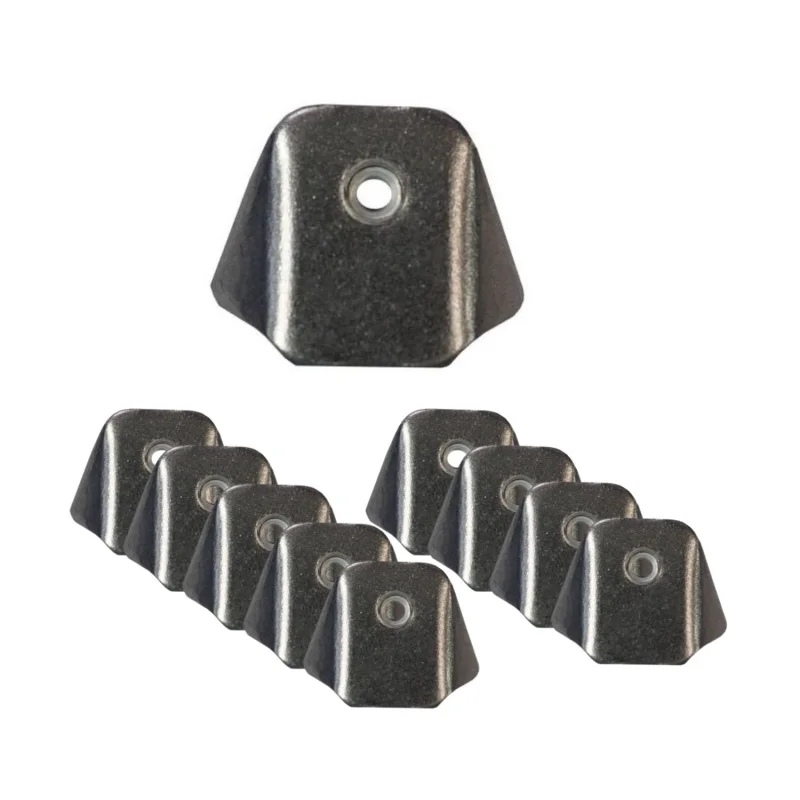

These Body Panel Tabs with 1/4"-20 NutSerts, also known as Trick Tabs, make mounting panels and accessories cleaner and faster than ever. Perfect for body panels, dash components, light brackets, fuel cells, battery boxes, linkages, and countless other fab
These Body Panel Tabs with 1/4"-20 NutSerts, also known as Trick Tabs, make mounting panels and accessories cleaner and faster than ever. Perfect for body panels, dash components, light brackets, fuel cells, battery boxes, linkages, and countless other fabrication needsthese weld-ready tabs are designed for maximum versatility.
Each tab is laser cut from 1/8" high-strength plate steel and then formed to create the signature winged profile that naturally fits tubing. The built-in 1/4"-20 NutSert eliminates the need for loose nuts and makes panel installation quick and frustration-freesimply thread a bolt into the tab.
Includes:
Specifications
Fitment
Designed to weld onto:
Common uses include:
Tech Insight
Built-in NutSerts dramatically speed up assembly and maintenance. No more chasing nuts, dropping hardware, or needing two tools to tighten a panel. Builders rely on these tabs for clean, professional fitment and easy serviceabilityespecially important on panels that are removed often like hoods, floors, dash pieces, and skid plates.
Body Panel Tabs Comparison
| Feature / Spec | Body Panel Tabs | NutSert Body Panel Tabs |
|---|---|---|
| Material | 1/8 High Strength Plate Steel | 1/8 High Strength Plate Steel |
| Integrated Threaded Insert | No | Yes 1/4-20 NutSert |
| Overall Length | 1.50 | 1.50 |
| Base to Hole Center | 1.00 | 1.00 |
| Hole Type | 3/8 diameter hole | Pre-installed 1/4-20 NutSert |
| Mounting Method | Requires bolt + nut | Bolt threads directly into tab |
| Fabrication Fit | Formed wing tab for tubing | Formed wing tab for tubing |
| Made in USA | Yes | Yes |
| Included Per Pack | 10 tabs | 10 tabs |
