Crane Axles Brake Plumbing Kit is built to make pinion brake plumbing simple, clean, and reliable. This kit is specifically designed for 1/8" NPT master cylinders, using the same Fragola Performance components we trust on all of our turn-key buggies.

Whether you're building a new rig or upgrading your plumbing system, this kit gives you every fitting, line, nut, and sleeve needed for a clean, leak-free installation.

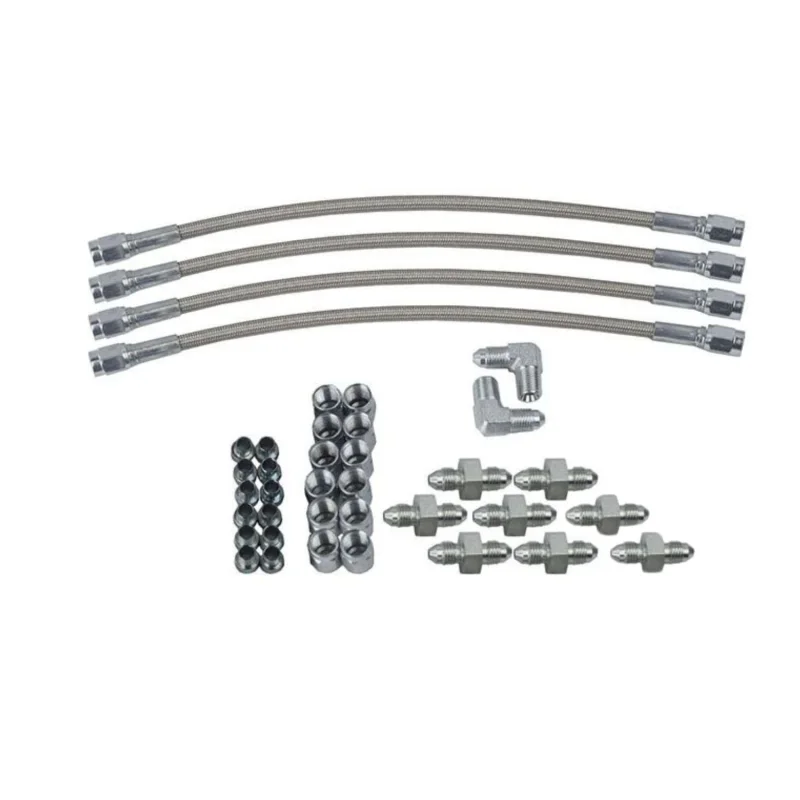

Includes:

• (4) 10" 3 Flex Lines
• (2) 1/8" NPT to 3 90 Fittings
• (8) 3 Unions
• (12) 3 Tube Nuts
• (12) 3 Tube Sleeves

Specifications

• Master Cylinder Compatibility: 1/8" NPT
• Line Size: 3 AN
• Brand: Fragola Performance
• Kit Type: Brake Plumbing Kit
• Application: Pinion Brake Systems
• Material: High-quality AN fittings & stainless braided flex lines
• Use Case: Trail rigs, bouncers, crawlers, competition buggies

Fitment

• This kit is designed for:
• Pinion brake systems using a 1/8 NPT master cylinder
• Universal fit for custom brake plumbing applications

Tech Insight

Pinion brake systems put extreme stress on brake plumbingheat, vibration, and movement all demand high-quality lines and fittings. Thats why this kit uses Fragola Performance components: reliable stainless braided hoses, precision-machined AN fittings, and tight-tolerance tube sleeves/nuts.

Using a pre-engineered kit eliminates mismatched fittings, improper thread sizes, and leaks. It also ensures repeatable results in custom brake setupsexactly the way we build them in our Wide Open Design turn-key buggies.
