This Brake Plumbing Kit is designed to make ordering your brake plumbing components simple and worry-free. Built using the same high-quality Fragola components we install on all Wide Open Design turn-key buggies, this kit is specifically configured for single-steer setups running GM master cylinders (9/16"-18 & 1/2"-20 ports).

Whether youre plumbing a new chassis or upgrading an existing rig, this kit provides the clean routing, durability, and reliability needed for hardcore off-road performance.

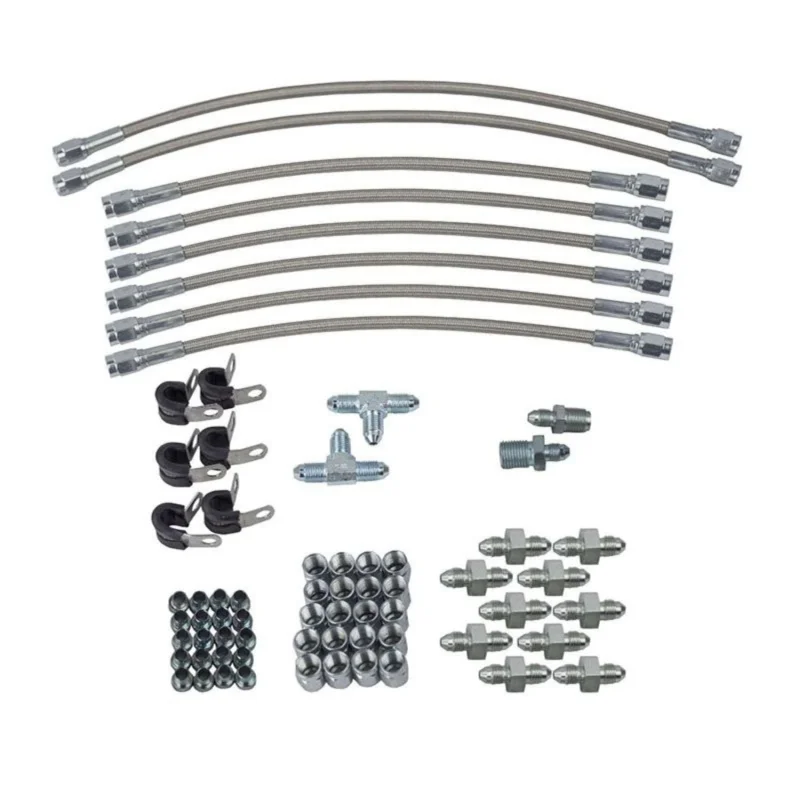

Included:

• (6) 10" -3 Flex Lines
• (2) 14" -3 Flex Lines
• (2) -3 Tees
• (1) 9/16"-18 I.F. to -3 Adapter
• (1) 1/2"-20 I.F. to -3 Adapter
• (10) -3 Unions
• (20) -3 Tube Nuts
• (20) -3 Tube Sleeves
• (6) 1/4" Stainless Cushion Clamps

Specifications

• Kit Type: Brake Plumbing
• System Configuration: Single Steer
• Master Cylinder Fitment: GM Master Cylinders (9/16"-18 & 1/2"-20)
• Brand: Fragola Performance
• Line Size: -3
• Use Case: Custom buggy builds, off-road applications, chassis plumbing

Fitment

• Single-steer brake systems
• GM master cylinders with 9/16"-18 and 1/2"-20 line ports
• Compatible with custom off-road builds, rock bouncers, rock crawlers, and Wide Open Design chassis setups

Tech Insight

Q: What vehicles or builds is this brake plumbing kit designed for?
A: This kit is designed for custom off-road chassis, buggies, rock crawlers, and trail rigs using a single-steer setup with a GM master cylinder featuring 9/16"-18 and 1/2"-20 outlet ports.

Q: What are the benefits of using stainless braided -3 brake lines?
A: Fragola stainless-braided -3 lines reduce line expansion under brake pressure, helping provide a firmer pedal feel, more consistent braking response, and improved durability compared to standard rubber hoses.

Q: Does this kit include everything needed to plumb the brake system?
A: This kit includes flex lines, tees, unions, tube nuts, tube sleeves, master cylinder adapters, and cushion clamps for a clean and professional brake plumbing installation. Additional hard line tubing and brake fluid are typically purchased separately.

Q: Why use a pre-configured brake plumbing kit instead of sourcing parts individually?
A: A matched kit saves time, eliminates guesswork, and ensures compatible fittings and line sizes. It also helps create a cleaner layout and makes future service or repairs much easier.
