Wide Open Designs 1-1/4" Chromoly Four Link Rod End Kit with 1" Bore is built for the most demanding four-link suspension systems. This setup includes everything needed to four-link the front or rear of your rig- as well as for use in industrial applications- delivering unmatched load capacity and durability for extreme duty and competition applications.

Each kit includes everything required , including massive chromoly rod ends, jam nuts, and heim joint spacers.

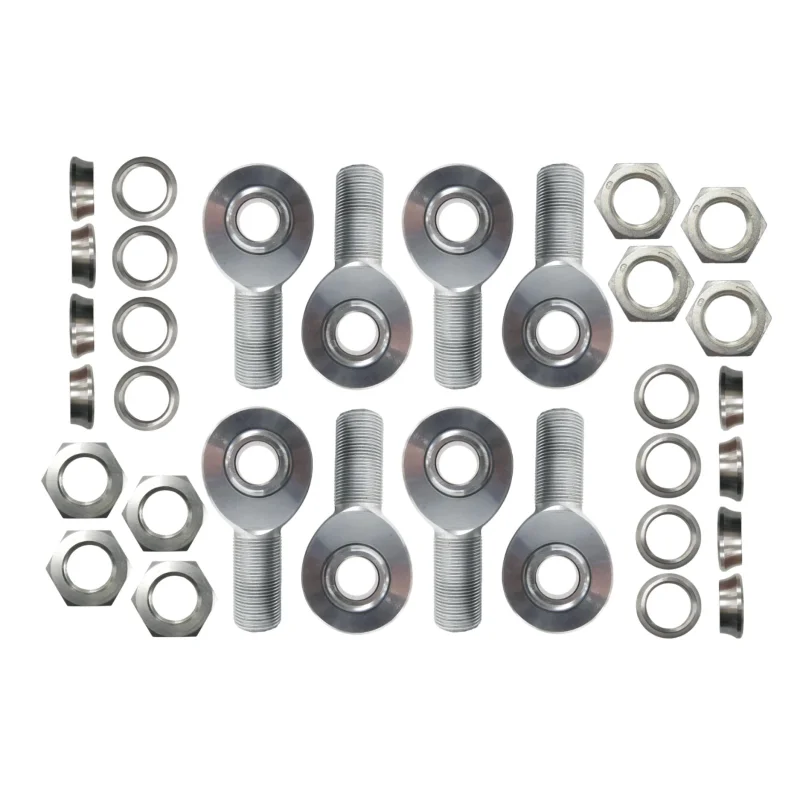

Kit Includes:

• (8) 1-1/4"-12 Thread Rod Ends w/ 1" Bore
  • 4 Left-Hand Thread
  • 4 Right-Hand Thread
• (8) Jam Nuts
• (16) 1" Stainless Steel High Angle Heim Joint Spacers

Specifications

• Thread Size: 1-1/4"-12
• Bore Size: 1"
• Installed Width (with spacers): 2.375"
• Material: Chromoly Steel
• High Angle Heim Joint Spacers: Stainless Steel
• Radial Static Load Rating: 76,200 lbs
• Thread Direction: Left & Right Hand Included

Fitment

• Extreme duty four-link suspension systems
• Front or rear applications
• Ultra-heavy buggies, competition rigs, rock bouncers, Ultra4-style builds
• Designed for 1" mounting bolts

Tech Insight

Running a 1-1/4" shank rod end with a full 1" bore provides the highest strength and shear capacity available in a traditional four-link rod end setup. This configuration is ideal for extreme vehicle weights, high shock loads, and aggressive suspension geometry where stepping down bolt size is not desired.

With a narrower installed width than stepped-down spacer options, this kit is also well-suited for tight packaging where bracket spacing is limited but strength cannot be compromised.

Pairs perfectly with 7075 aluminum suspension links or heavy-wall steel links in competition-level builds.
