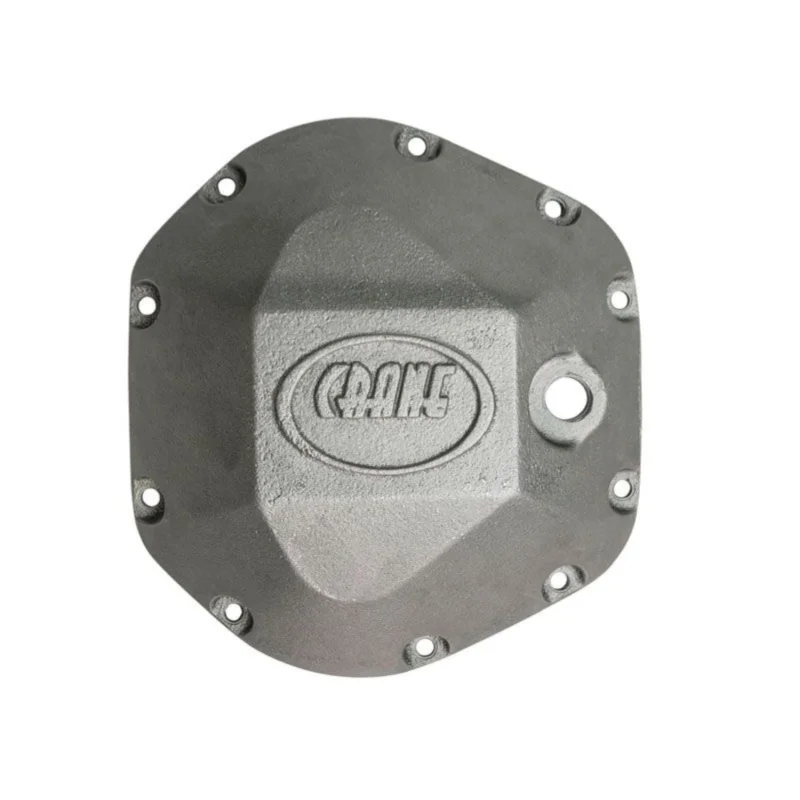

Crane Axles Dana 44 Chromoly Diff Cover is engineered for ultimate protection, unbeatable strength, and a low profile design that wont hang up on obstacles. Cast in the USA from high strength 8620 chromoly steel and fully machined for precision, this diff cover is built to take the abuse of hard trail riding, rock crawling, and full-throttle off-road use.

Key Features:

• Unfinished Steel (ready for paint or powder coat)
• Lipless, Low-Profile Design to prevent snagging on rocks and obstacles
• Recessed Bolt Land protects bolt heads from impact
• Fully Machined for perfect fitment and sealing
• Cast from USA-Sourced 8620 Chromoly Steel
• Grade 8, 12-Point Hardware Included

Includes:

• (1) Crane Axle Dana 44 Chromoly Diff Cover
• (1) Grade 8 12-Point Hardware Kit

Specifications

• Material: 8620 Chromoly Steel (USA cast & machined)
• Finish: Unfinished Steel
• Axle Type: Dana 44
• Hardware: Grade 8, 12-point included
• Strength: ~97,000 psi tensile / 57,000 psi yield (typical 8620 properties)
• Design: Lipless, low profile, bolt protected flange

Fitment

Fits Dana 44 front or rear axles on the following OEM applications.

Front Axle Fitment Dana 44

GM

• 19721976 K5 Blazer/Jimmy
• 19721976 K10
• 19721976 K20
• 19721976 K30
• Some 1977 K5 (varied 10-bolt / D44)

Dodge

• 19741993 Ramcharger
• 19802001 150/1500
• 19881995 2500 Light Duty
• 19721980 W200

Ford

• 19591979 F-100 / F-150 / F-250
• 19801996 F-150
• 19591987 F-250 Light Duty
• 19741979 Bronco

International Harvester

• 19751980 Scout II
• 1974 Travelall 100 44
• 19691973 1200/1210 44
• 19741975 200 44

Jeep

• 19671973 Jeepster Commando
• 19741991 Wagoneer
• 19741983 SJ
• 20032006 TJ Wrangler Rubicon (front & rear)
• 20072015 JK Wrangler Rubicon (front & rear)
• 19872001 Venezuelan XJ
• 19961998 Venezuelan Grand Cherokee

Rear Axle Fitment Dana 44

Jeep

• 19481975 CJ
• 20032014 Wrangler Rubicon
• 20042006 LJ Wrangler Unlimited
• 19972006 Wrangler (optional D44)
• 20072015 Wrangler (optional 2007, standard 2008+)
• 19871990 XJ (tow package)
• 19871992 Comanche MJ Big-Ton
• 1986 CJ-7
• 19961998 Venezuelan Grand Cherokee
• 20062010 Grand Cherokee SRT8

International Harvester

• 19711980 Scout II
• 1974 Travelall 100 44

Isuzu / Honda

• 19932004 Isuzu Rodeo / Honda Passport
• 19941997 Isuzu Rodeo / Honda Passport

Mitsubishi

• 20002010 Montero/Pajero (Venezuelan Dakar Models)

Tech Insight

Crane Axle diff covers are engineered around real-world abuse, not theoretical strength charts. The lipless design eliminates the snag point found on many OEM covers, allowing the housing to slide smoothly over rocks. The 8620 chromoly casting combines a hardened outer shell (impact resistance) with a ductile core (prevents cracking), making it one of the strongest diff cover materials you can put on a Dana 44. Every cover is machined in-house on precision CNC equipment to guarantee proper sealing and consistent fitment.
