Upgrade your GM 14-bolt rear axle by replacing the heavy, outdated factory drum brakes with a clean, reliable -ton disc brake setup. This conversion kit provides a noticeable improvement in braking power, cooling efficiency, wheel clearance, and overall ride quality. Designed to weld directly onto 3.50" axle tubes, this kit fits GM 14-bolt rear axles and many other applications using the same tube size.

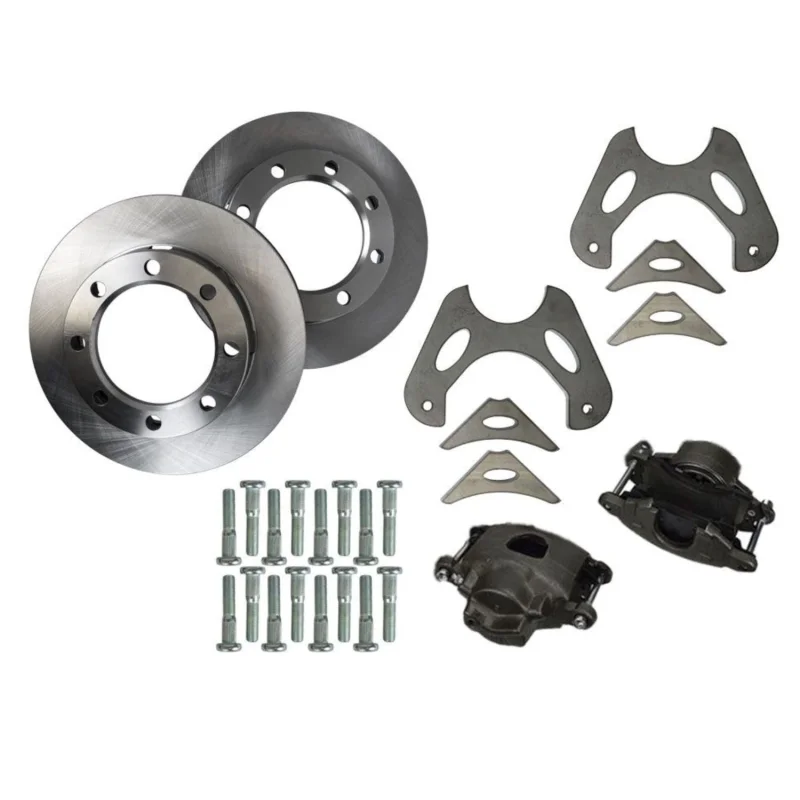

Includes:

• (2) Weld-On 3/8" Caliper Brackets (with gussets)
• (2) GM 3/4-Ton Calipers
• (2) GM 3/4-Ton Rotors
• (1) Set of Brake Pads
• (16) 9/16"-18 Wheel Studs

Specifications

• Fits GM 14-Bolt Rear Axles
• Compatible Tube Diameter: 3.50"
• Bracket Material: 3/8" High-Strength Steel
• Bracket Style: Weld-on with integrated gussets for caliper stability
• Kit Weight Savings: Significantly lighter than factory drum brakes
• Wheel Compatibility: Fits most 15" steel wheels
• Rotor Style: GM 3/4-Ton
• Caliper Style: GM 3/4-Ton
• Hardware Included: Yes

Fitment

• Fits GM 14-Bolt rear axle applications
• Compatible with 3.50" axle tube diameters
• Compatible with most 15" steel wheels
• Uses common GM 3/4-ton brake rotors and calipers
• Designed for off-road, rock crawler, race, and custom axle applications

Tech Insight

Upgrading from drum to disc brakes on a 14-bolt axle completely changes braking performance, especially under high heat, heavy loads, or off-road abuse. Disc brakes cool much faster, resist fade, and maintain consistent pad-to-rotor contact throughout pad life. Removing the bulky drum assemblies also reduces unsprung weight, improving suspension response and shock performance. The laser-cut 3/8" brackets provide excellent caliper alignment and repeatable installation accuracy.
