This lightweight brake system is engineered to replace the heavy factory 1-ton brakes on GM Dana 60 front axles or any axle using GM-pattern kingpin knuckles with OE-style 8-lug wheel hubs. Designed for off-road performance, Ultra4 racing demands, and maximum stopping power, this kit significantly reduces unsprung weight while upgrading you to Wilwoods competition proven 4-piston braking technology.

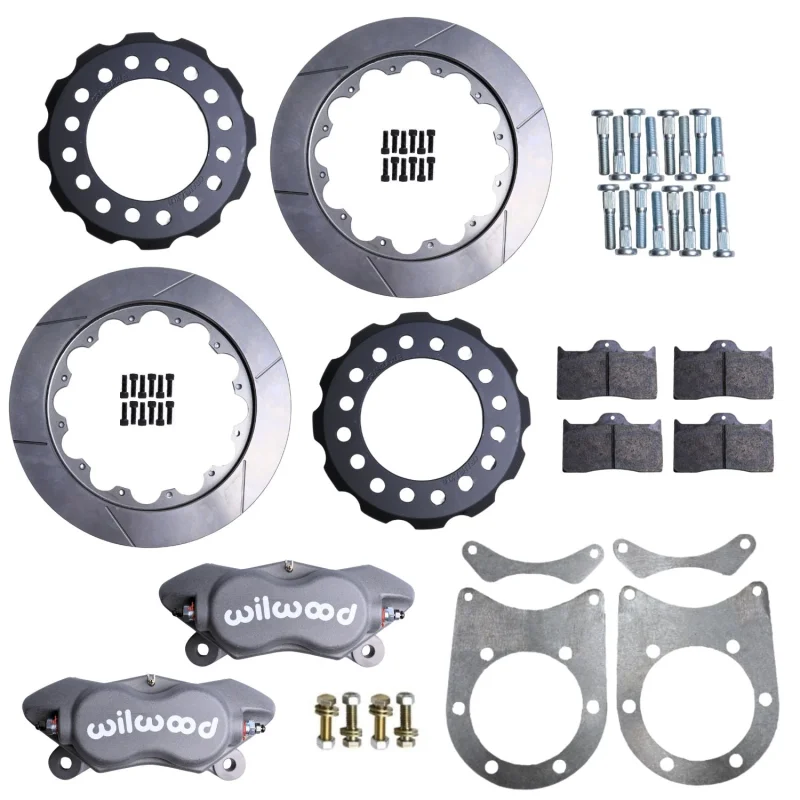

Includes:

• (2) GM Dana 60 Bolt-On Caliper Brackets
• (2) Wilwood 4-Piston Calipers
• (2) 13.5" Wilwood Rotors
• (2) Crane Axle Brake Hats
• (1) Set of Brake Pads
• Caliper Hardware

Specifications

• Saves 36.5 lbs over a -ton brake conversion
• 4-Piston Wilwood Calipers for increased clamping force
• 13.5" Wilwood Rotors & Hats (domestic grade mild steel, machined with Wilwoods slot pattern)
• Requires 17"+ wheel for rotor clearance
• Brackets laser-cut from 3/8" high strength plate steel
• Bolt-on installation
• Works with GM kingpin knuckles and most aftermarket kingpin knuckles (Crane Axle, Solid, Reid)

Fitment

• Designed to replace heavy factory 1-ton brake systems on GM Dana 60 front axles
• Compatible with GM-pattern kingpin knuckles using OE-style 8-lug wheel hubs
• Commonly used in rock crawlers, Ultra4 cars, trail rigs, mud trucks, and custom off-road builds
• Verify hub, rotor, wheel, and steering clearance before installation

Compatible with:

• Crane Axle GM Dana 60 Kingpin Knuckles
• OEM GM Dana 60 Kingpin Knuckles
• Aftermarket GM-style kingpin knuckles including Reid Racing and Solid Axle Industries

Tech Insight

Reducing unsprung weight is one of the most effective upgrades for improving suspension performance, wheel control, and ride quality in off-road environments. This kit sheds 36.5 lbs compared to typical -ton conversions, letting the shocks and springs do their job more efficiently. The 4-piston Wilwood calipers apply pad pressure evenly across the rotor surface, resulting in increased braking torque with better modulationan essential advantage for Ultra4 speeds, rock crawling control, and heavy rigs on big tires. The oversized 13.5" rotor delivers improved leverage and increased thermal capacity, ensuring consistent stopping power in high heat, high load situations.
