This lightweight brake system is engineered to replace the heavy factory 1-ton brakes on GM Dana 60 front axles or any axle using GM-pattern kingpin knuckles with OE-style 8-lug wheel hubs. Designed for off-road performance, street driving, Ultra4 racing demands, and maximum stopping power, this kit significantly reduces unsprung weight while upgrading you to Wilwoods competition-proven 6-piston braking technology.

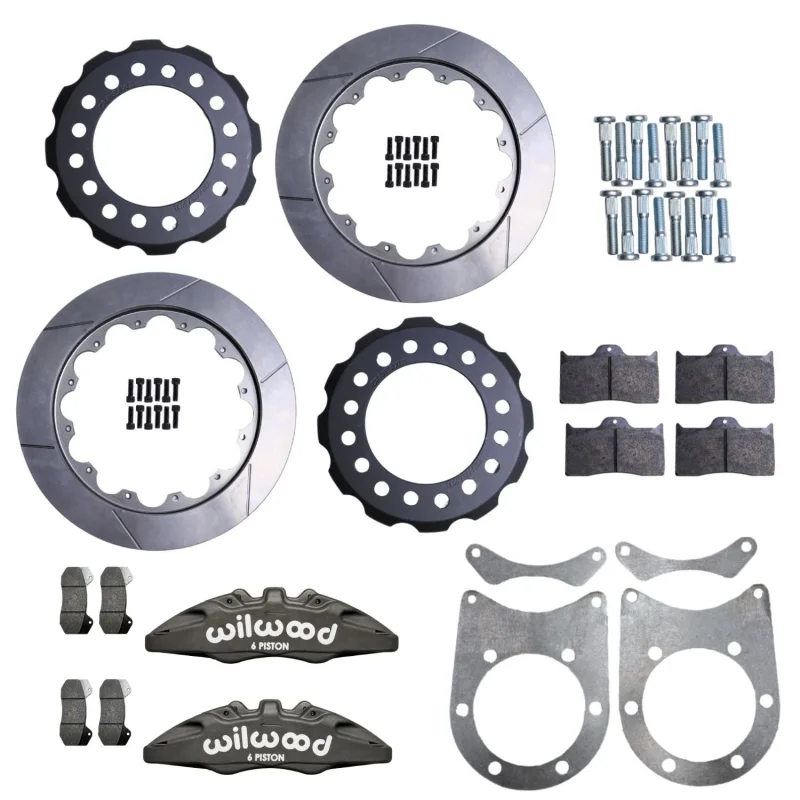

Includes:
Specifications
| Component | Specification |
|---|---|
| Calipers | Wilwood Forged Dynalite 6 Piston |
| Rotor Diameter | 13.5" |
| Rotor Type | Vented |
| Brake Hat Material | Machined 6061 Aluminum |
| Bracket Material | Laser Cut 3/8" Steel |
| Wheel Bolt Patterns | 8 on 6.5" & 8 on 170mm |
| Piston Area (per caliper) | 4.80 sq. in. |
| Hardware | Safety Wire Ready Rotor Bolts |
| Fitment Type | Bolt On |
Fitment
| Make | Model | Year Range | Axle Application |
|---|---|---|---|
| Chevrolet | K30 | 19791987 | GM Dana 60 Kingpin Front Axle |
| Chevrolet | K30 Crew Cab | 19881991 | GM Dana 60 Kingpin Front Axle |
Knuckle Compatibility:
Tech Insight
The 13.5 vented rotors generate increased braking torque for the same pedal input, translating into shorter stopping distances. Meanwhile, the lightweight 6061 aluminum rotor hats cut unsprung weight, improving suspension response and wheel control helping your shocks perform at their best and keeping traction consistent over uneven terrain.
This isnt just an upgrade its a system built for maximum performance, minimal weight, and total reliability.
