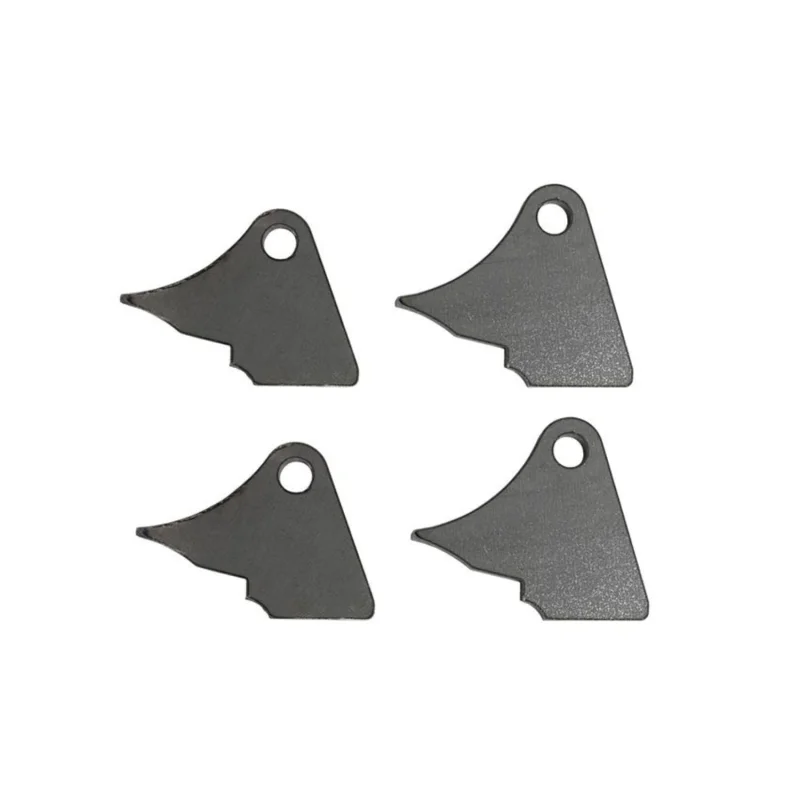

These Dana 60 Shock Mount Gussets are designed to weld between the axle tube and the Dana 60 inner C, forming a structural brace while providing a strong, properly positioned shock mounting location. They push the shock outward toward the knuckle as far as possible while still clearing steering throughout the full cycle.

The included tabs are cut at 2 different heights to help create the correct shock angleespecially useful for front shocks leaning back toward the chassis. Built specifically for Dana 60 housings, these mounts provide strength, clearance, and improved shock geometry in one clean package.

Includes:

• (4) Mounts / Gussets - 2 of each height - (enough for one complete axle)

Specifications

• Material: 1/4" High Strength Plate Steel
• Hole Diameter: 1/2"
• Design: Axle tubetoinner C brace with shock mount
• Cutting Method: Precision laser cut
• Condition: Weld-ready
• Made in the USA

Fitment

• Welds to Dana 60 inner C and axle tube
• Fits most variations of Dana 60 front axles (some fitting may be required due to casting differences)
• Ideal for coilover, air shock, or ORI mounting on custom off-road builds

Tech Insight

Dana 60 inner C shock mounts solve one of the biggest problems with front suspension packagingfinding a strong, properly angled mounting point that clears steering knuckles throughout full lock and suspension travel. By tying the shock mount directly into both the tube and the C, these gussets create a triangulated support structure, improving durability and reducing flex. The offset tabs allow builders to fine-tune shock angle, improve motion ratio, and maintain steering clearance.
