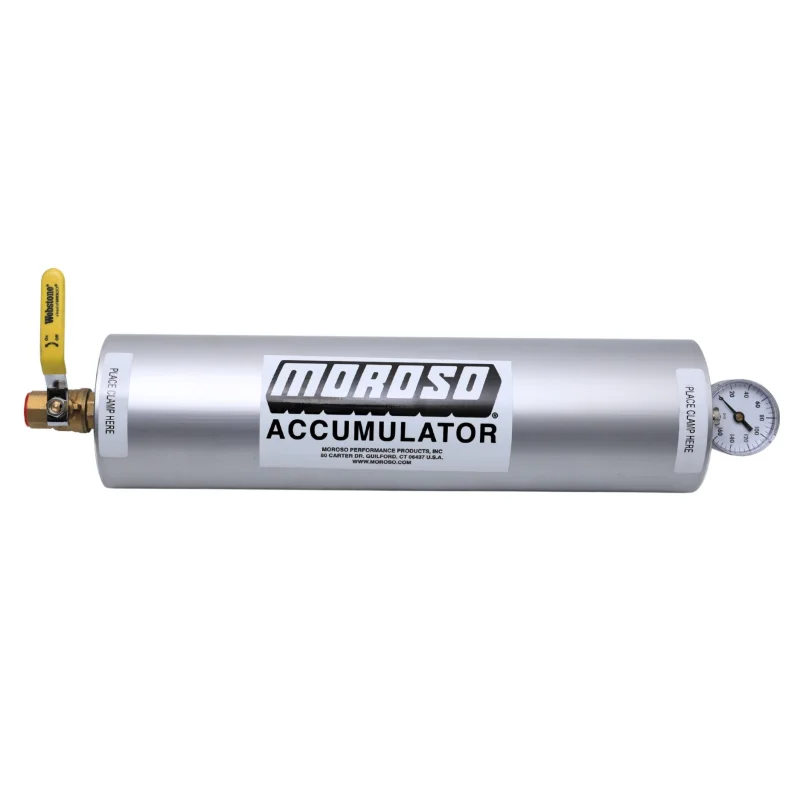

Protect your engine from one of the most common causes of catastrophic engine damagemomentary oil pressure loss. The Moroso 3-quart Oil Accumulator stores a pressurized reserve of engine oil and instantly delivers it back to the engine during hard acceleration, steep climbs, side hills, braking, or high-speed cornering when the oil pickup can become uncovered. It can also be used to pre-oil the engine before startup, greatly reducing the dry starts responsible for much of an engine's long-term wear.
Ideal for V8 engines, high-performance six-cylinder builds, rock crawlers, Ultra4 cars, prerunners, drag cars, road race vehicles, and other high-performance applications, the 3-quart accumulator features a heavy-wall aluminum cylinder, billet aluminum floating piston, integrated pressure gauge, and manual ball valve. Whether you're protecting an expensive race engine or adding insurance to a trail rig, an oil accumulator is one of the smartest upgrades you can make.
Includes:
Note: Moroso 3-Quart Oil Accumulator Clamps Sold Separately
Specifications
| Specification | Details |
|---|---|
| Capacity | 3 Quarts |
| Overall Length | 20-1/8" |
| Cylinder Diameter | 4-1/4" |
| Oil Port | 1/2" NPT |
| Valve | Manual Ball Valve |
| Pressure Gauge | Included |
| Air Charge | Schrader Valve |
| Mounting | Any Position |
| Construction | Heavy-Wall Aluminum Cylinder |
| Internal Piston | Billet Aluminum Floating Piston |
| Serviceable | Yes |
Fitment
Universal Fitment
Fitment Notes:
Tech Insight
An oil accumulator stores pressurized engine oil and automatically supplies it whenever engine oil pressure drops, helping protect bearings and other critical engine components.
Yes. A 3-quart accumulator adds approximately three additional quarts of oil capacity to the engine's lubrication system.
It helps significantly reduce the effects of temporary oil starvation caused by steep climbs, side hills, rock crawling, acceleration, braking, and cornering. It is not a substitute for a properly designed oil pan but provides an important layer of protection.
Yes. Opening the manual valve before startup allows stored oil to pressurize the engine before cranking, reducing dry-start wear.
Yes. The accumulator can be mounted in virtually any position without affecting operation.
The 3-quart version is generally recommended for:
Yes. Most installations use -10AN (5/8") high-pressure hose rated for at least 400 PSI.
No. This model includes a manual ball valve. Electric and pressure-activated valves are available separately for automatic operation.
