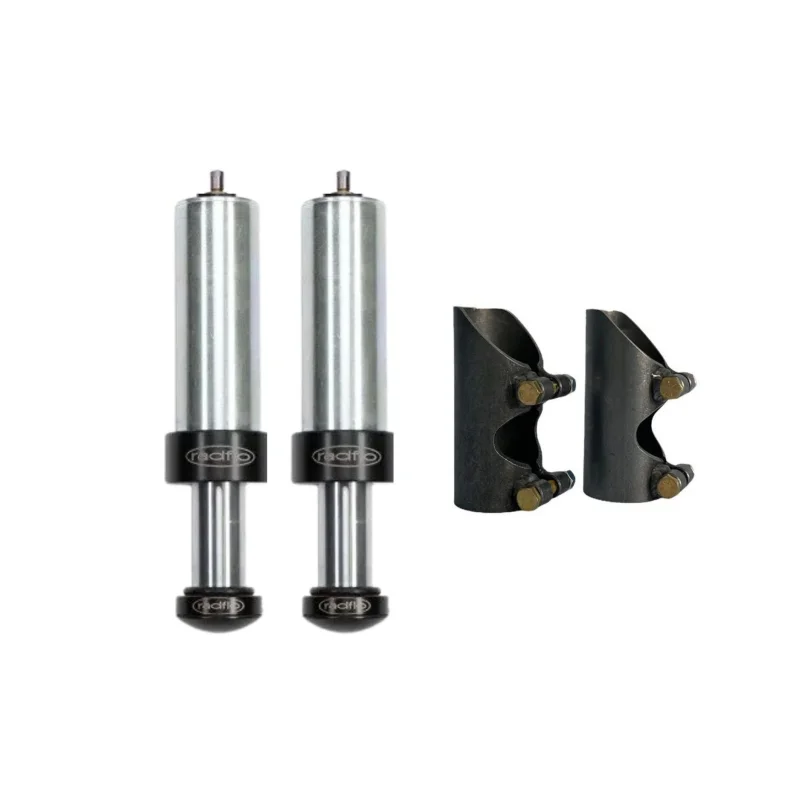

This Radflo 2.0 Hydraulic Bump Stop and Short Bump Stop Can Kit provides a complete solution for adding controlled suspension bottom-out protection to your off-road build. Designed for rock crawlers, Ultra4 race cars, prerunners, and custom tube chassis vehicles, this kit combines Radflos race-proven hydraulic bump stops with precision laser-cut weld-on bump cans - all with a bundled price discount.

Radflo hydraulic bump stops act as a secondary shock absorber during the final inches of suspension compression. Using velocity-sensitive damping and Radflos exclusive Freeflo Racing Piston, they progressively increase resistance as suspension speed increasesabsorbing impact energy while protecting the chassis, suspension components, and driver from damaging loads.

Includes

• (2) Radflo 2.0 Hydraulic Pinch Mount Bump Stops
• Travel option selected at purchase: 2" or 3"
• (2) Short Weld-On Bump Stop Cans
• Weld-ready fabrication components

Specifications

• Bump Stop Type: Hydraulic Pinch Mount
• Bump Stop Body Diameter: 2.0"
• Travel Options: 2" or 3"
• Rod Shaft Diameter: 1.25"
• Rod Material: Mirror-polished alloy steel
• Rod Finish: Chrome plated
• Body Material: SSID alloy steel tube
• Body Finish: Clear cadmium plating
• Body Caps / Eyelets: CNC machined 6061 aluminum
• Body Cap Finish: Black anodized
• Rod Guide: CNC machined bronze with PTFE coating
• Piston: Radflo Freeflo aluminum racing piston
• Seals: Quad-ring and lip seal combination (rebuildable)
• Valving Type: Velocity-sensitive deflective disc
• Oil: Radflo high-temp foam resistant suspension fluid
• Pressurization: Nitrogen charged
• Nitrogen Pressure: 200 PSI
• Serviceability: Fully rebuildable and tunable

Bump Stop Can Details

• Constructed from DOM steel tubing
• Precision laser cut for consistent fitment
• Weld-ready fabrication part
• Compatible with most 2" hydraulic or air bump stops
• Designed for 2" or 3" travel bump stops
• Manufactured in the USA

Fitment

• Universal fitment for custom suspension systems
• Rock crawlers
• Ultra4 race cars
• Prerunners and desert trucks
• Tube chassis buggies
• Custom off-road fabrication projects

Proper bump stop placement should be determined based on suspension travel, shock length, and bump engagement height.

Tech Insight

Hydraulic bump stops are critical for managing suspension compression during hard impacts. Instead of acting like a solid stop, they function as a progressive hydraulic damper that slows suspension movement in the final inches of travel. This dramatically reduces shock loads transmitted into the chassis and suspension components.

Radflo bump stops use velocity-sensitive valving combined with their Freeflo Racing Piston to automatically adjust damping based on impact speed. When paired with properly positioned bump cans, they provide a reliable and serviceable solution for protecting high-performance off-road suspension systems.
