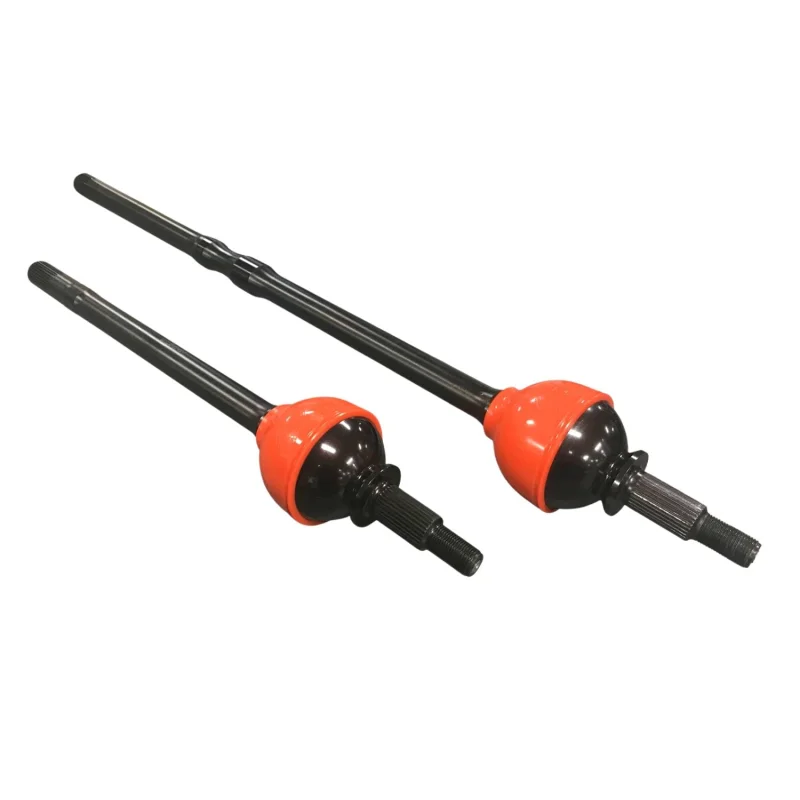

The strongest front axle upgrade available for a GM Dana 60. The RCV Ultimate 300M CV Axle Set was engineered at the request of professional off-road racers who needed the smooth articulation of RCVs Ultimate CV designcombined with even more strength for extreme racing environments.

These axles are manufactured from 300M alloy steel, one of the highest strength aerospace grade materials used in off-road drivetrain components. The result is a CV axle set capable of surviving high horsepower, massive tires, aggressive steering angles, and brutal terrain without the binding, chatter, or breakage common with U-joints.

At any steering angle, from straight or full lock, 300M CV axles maintain consistent strength and deliver smooth, positive power transfer to the ground. Perfect for rock bouncers, Ultra4 racers, mud trucks, heavy trail rigs, or any GM 1-ton drivetrain pushed beyond factory limits.

Includes:

• Left & right 300M CV axle shafts
• 300M outer stub shafts
• SST seals & installation tool
• Installation hardware
• Synthetic moly grease
• Installation instructions
• Black oxide coating (standard)
• Optional nickel plating available

Specifications

• Axle Model: Dana 60
• Unit Bearing: No
• OEM Inner Spline: 35
• OEM Outer Spline: 35
• RCV Inner Spline: 35
• RCV Outer Spline: 35
• Left Inner Axle Length: 35.1 (300M shaft)
• Right Inner Axle Length: 17.67 (300M shaft)
• Outer Stub Axle Length: 12
• Boot Technology: RCV bootless, sealed-joint design
• Warranty Note: Warranty is void over 47" tires

Fitment

Designed for GM 1-ton trucks equipped with a Dana 60 front axle:

• Chevrolet K30 19771987
• GMC K35 19771987
• Chevrolet V30 19871991
• GMC V35 19871991
• Also fits GM 1-ton Dana 60 axles swapped into custom builds
• Must be a 35-spline inner and outer Dana 60.

Tech Insight

RCVs 300M CV axle line is the pinnacle of CV axle technology, created to survive the harshest professional off-road conditions.

Heres what sets it apart:

• 300M alloy steel delivers exceptional tensile strength and toughness
• Constant velocity joints maintain full torque capacity at all steering angles
• Zero U-joint binding = smoother power delivery & reduced component stress
• Stronger outer stubs for extreme wheel end loads
• Perfect for 4047 tires, locked axles, and high horsepower V8 builds

If youre pushing a GM Dana 60 past its limits, this is the axle set that keeps you in the game.
