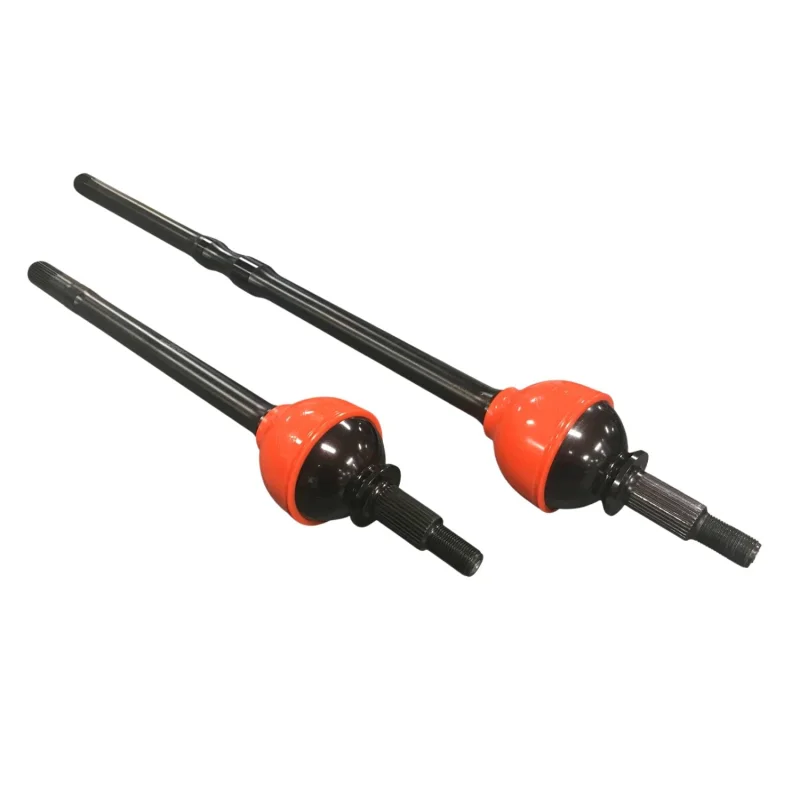

The RCV Performance Ultimate Dana 44 CV Axles for the Jeep JL and JT Rubicon platform deliver unmatched strength, smoothness, and steering performance. These axles replace the OEM U-joint shafts with a high-strength constant velocity design that eliminates oscillation, crow-hop, and torque spikes caused by uneven U-joint power delivery.

RCV CVs maintain 100% strength at any steering angle up to 45, thanks to six fully-engaged points of contact in every phase of rotationsomething no U-joint can match. The CV is 18% larger than previous Dana 44 designs and utilizes RCVs proven Dana 60-class architecture, offering twice the strength of OEM shafts while keeping the lighter weight and ground clearance advantages of a Dana 44.

This one piece FAD friendly design eliminates the factory disconnect coupler but retains full FAD module functionality. This means no warning lights and no reprogramming.

Includes:

• Left & right high-strength CV axle shafts
• Outer stub shafts
• SST seals & installation tool
• Synthetic moly grease
• Installation hardware
• Installation instructions
• Black oxide coating (standard)
• Optional nickel plating available

Specifications

• Axle Model: Dana 44
• Unit Bearing: Yes
• OEM Inner Spline: 32
• OEM Outer Spline: 32
• RCV Inner Spline: 32
• RCV Outer Spline: 32
• Left Inner Axle Length: 21.27
• Right Inner Axle Length: 34.58
• Outer Stub Axle Length: 6.25
• Boot Technology: RCV bootless, sealed joint design
• Warranty: Limited Lifetime (No Questions Asked)
• Warranty Note: Warranty void over 43" tires

Fitment

Designed for all Jeep JL/JT Rubicon Dana 44 applications, including:

• Jeep Wrangler JL Rubicon (2.0L, 3.6L, 6.4L 392, Diesel)
• Jeep Wrangler JL 392 Rubicon
• Jeep Gladiator JT Rubicon
• FAD Compatibility
• 1-piece version eliminates the axle disconnect hardware
• Fully retains FAD module communication
• No warning lights or programming needed

Does NOT fit:

• Non-Rubicon JL/JT (Dana 30 front axle)
• Aftermarket D44 housings with non-OEM geometry

Tech Insight

This JL/JT-specific RCV CV is 18% larger than any previous Dana 44 CV and uses Dana 60 architecture, providing the strength of a full-float 1-ton front end while preserving the light weight and ground clearance of a Jeep platform.

Key performance advantages include:

• 6 point CV contact = smooth, constant torque delivery
• Zero U-joint binding = no crow hop or vibration at full lock
• Gun drilled outboards with grease port accessno disassembly required
• Significantly stronger than OEM Dana 60 U-joint shaft sets
• Aircraft grade coupler materials
• Bronze FAD bushing replaces failure prone OEM plastic component

This upgrade is ideal for big-tire JL/JT builds looking to exceed Dana 60 performance without sacrificing clearance or weight.
