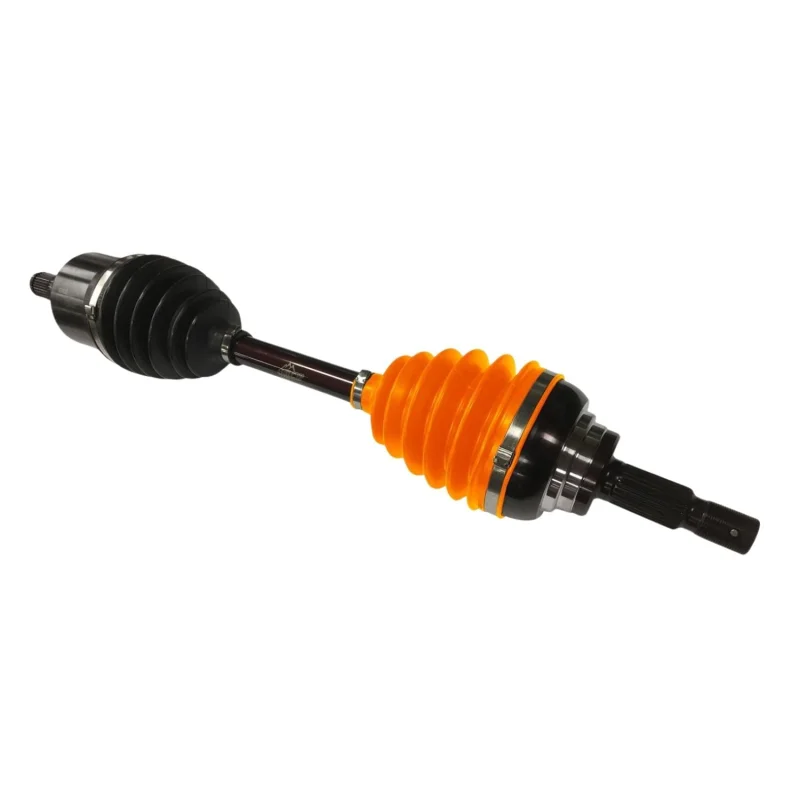

The RCV Performance Ultimate IFS CV Axles for the Marlin Crawler RCLT HD +2.75 Long Travel Suspension Kit are engineered to eliminate the strength limitations of OEM Toyota IFS axles. Built for serious off-road usefrom high speed desert to technical crawlingthese axles deliver unmatched strength, smooth articulation, and race proven reliability.

Designed specifically for Marlin Crawlers +2.75 Long Travel system, this axle set uses RCVs proven double offset inboard CV design with massive 1 ball bearings and 300M internal components. The outboard CV's use Dana 60 level architecture with a blend of 4340 chromoly + 300M components, providing strength that meets or exceeds the performance of a solid axle swap while keeping all the benefits of IFS steering and ride quality.

The 35-spline 300M center bar is the strongest in the industry, paired with RCVs high temperature SPEC moly grease to control heat in extreme environments. These axles deliver smooth power at all travel ranges, support big tires, and are backed by RCVs No Questions Asked Lifetime Warranty against breakage.

Includes:

• Left and right Marlin Crawler +2.75 IFS CV axles
• 300M 35-spline center bars
• Double offset 300M inboard CV assemblies
• Dana 60 architecture outboard CV assemblies (4340/300M hybrid)
• RCV high temp SPEC grease
• Black oxide finish
• Optional nickel plating available

Specifications

• Suspension Fitment: Marlin Crawler RCLT HD +2.75 Long Travel
• Material (Center Bar): 300M, 35 spline
• Inboard CV: Double offset, 1 ball bearings, 300M internals
• Outboard CV: Dana 60 architecture, 4340 + 300M hybrid
• Coating: Black oxide (standard), Nickel plating optional
• Maintenance: Low maintenance, high temp moly grease
• Warranty: Limited Lifetime (No Questions Asked)

Fitment

• Direct Fit for Marlin Crawler RCLT HD Long Travel (+2.75)
• Compatible with the Marlin Crawler RCLT HD 2.75 long travel suspension system.

  Designed to Fit These Vehicles:

• Toyota Tacoma 4x4 2005+
• Toyota FJ Cruiser 20072014
• Toyota 4Runner 4x4 2003+ (including GX470/GX460 variants when equipped with RCLT HD)

Notes:

• Axle length and specifications are matched specifically to the Marlin +2.75 LT kit.
• Not compatible with OEM length suspension.

Tech Insight

If youre running the Marlin Crawler RCLT HD +2.75 Long Travel kit, these axles are the strongest bolt on solution available. Unlike OEM and aftermarket Toyota CVs that neck down, bind at angle, or overheat during abuse.

RCVs design solves every weak point:

• Double offset inboard CV controls articulation smoothly through long travel cycles
• Dana 60based outboard joint resolves the outer CV strength bottleneck
• 300M center bar handles high horsepower, big tires, and hard hits
• Race tested in Ultra4, SCORE, BITD and proven to outperform solid axle swaps

This is the axle kit built for people who actually use their long-travel rigs to their limits.
