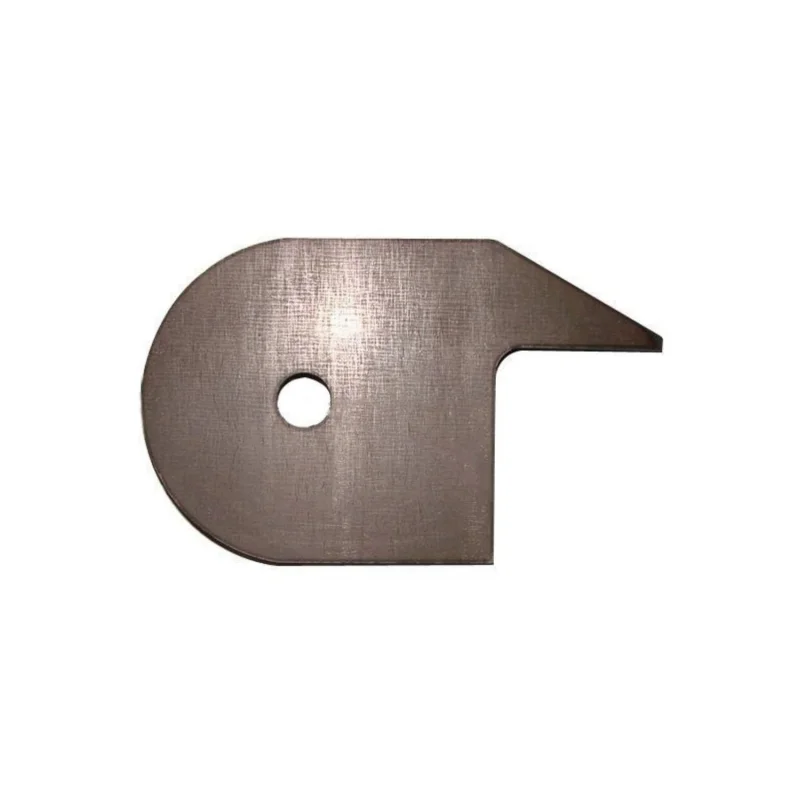

These Small Front Truss Link Tabs simplify mounting your suspension links by giving you a precise and strong mounting point on your axle truss. They can be paired with short, medium, or large front truss tabs to fine tune suspension geometry and achieve the link angle your build requires.

Each tab is laser cut from 1/4" high strength plate steel, ensuring accuracy, consistency, and a clean, weld-ready finish. Designed and manufactured 100% in the USA, these tabs save you fabrication time and deliver professional-grade fitment.

Includes:

• (1) Small Front Truss Link Tab (Note: 2 tabs are required to mount a single link arm.)

Specifications

• Material: 1/4" High Strength Plate Steel
• Overall Length: 4.875" (including overlap)
• Base to Hole Center: 1.75"
• Hole Diameter: 1/2"
• Cutting Method: Precision laser cut
• Condition: Weld-ready
• Pairing Options: Works with Short, Medium, or Long Truss Link Tabs
• Made in the USA

Fitment

• Universal weld-on fitment for front axle trusses used on custom off-road builds including crawlers, bouncers, linked trail rigs, and high-performance suspension setups.
• Small vs. Large Front Truss Link Tabs Comparison

Tech Insight

Small Front Truss Link Tabs offer a compact link mounting option where clearance is tight or where lower link angles are needed at the axle. The extended overlap length increases weld contact area for strength, and pairing with short, medium, or long tabs allows builders to dial in anti-dive characteristics, caster behavior, and link separation to match their specific suspension goals.
