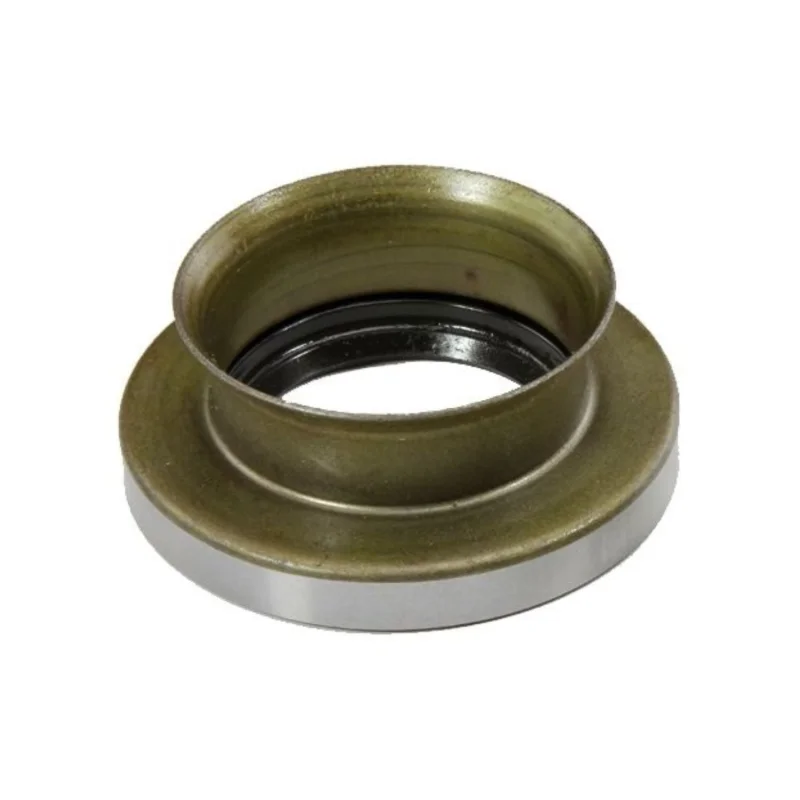

The Spicer Dana 60 Front Axle Shaft Tube Seal is one of the most overlooked components in the front axle rebuilding process. This genuine Spicer seal is designed to prevent gear oil from leaking out through the axle tubes, sealing the housing to the axle shaft for long-term durability and reliability.

Includes:

• (1) Spicer Dana 60 Front Axle Tube Seal

Specifications

• Axle Type: Dana 60 (Non-Disconnect)
• Side: Driver or Passenger
• Shaft Diameter: 1.568
• Housing Diameter: 2.620
• Seal Width: 0.350
• Overall Height: 1.000
• Manufacturer: Spicer

Fitment

• Fits Dana 60 Front Axles (Non-Disconnect)
• Universal fit for both driver and passenger sides

Tech Insight

Axle tube seals are often neglected during rebuilds, but they play a vital role in maintaining proper lubrication and protecting internal components from contamination. A leaking seal can lead to premature bearing wear and reduced gear life. Installing genuine Spicer tube seals ensures a factory-quality fit and performance, giving your axle the protection it needs to handle tough conditions both on and off-road.
