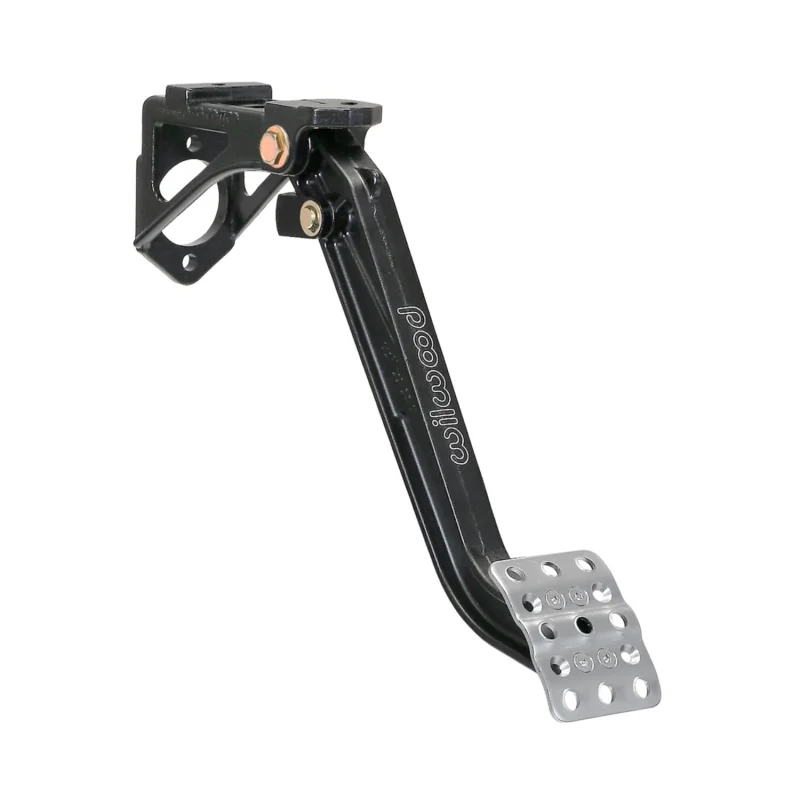

The Wilwood Swing Mount Clutch / Brake Pedal is a lightweight, high strength pedal assembly designed to mount a single brake or clutch master cylinder in a forward position outside the firewall.This pedal accepts Wilwood vertical mount flange single or tandem outlet master cylinders. Horizontal mount flange master cylinders require an adapter kit. Master cylinders are sold separately and selected by style and bore size.

Featuring a forged aluminum I-Beam style pedal arm and an aluminum mount box, this assembly provides excellent rigidity with minimal weight. The 7.0:1 pedal ratio offers strong hydraulic leverage, making it ideal for manual brake or clutch systems. A non-slip waffle style pedal pad is laterally adjustable to fine tune driver position and clearance.

Includes:

• (1) Swing Mount Clutch / Brake Pedal Assembly
• Forged aluminum I-Beam pedal arm
• Adjustable stainless steel non-slip pedal pad
• Radiused clevis and pivot pin hardware
• Integral pedal return spring attachment point
• Master cylinder and adapter kits sold separately.

Specifications

• Manufacturer: Wilwood
• Pedal Mount Location: Swing
• Mount Facing: Forward (Engine Bay)
• Pedal Ratio: 7.0:1
• Balance Bar: No
• Material: Aluminum
• Finish: Black E-Coat
• Mount Length: 12.89 in
• Pedal Length: 12.10 in

Fitment

• Accepts Wilwood vertical-mount flange single or tandem outlet master cylinders
• Horizontal-mount flange master cylinders require an adapter kit
• Suitable for single brake or clutch applications
• Designed for manual systems
• Compatible with custom fabricated pedal mounts
• Important Cautions
• Horizontal Mount Tandem Masters: To use this pedal with a horizontal mount flange tandem outlet master cylinder, you must order adapter kit PN 250-3677.
• Four-Wheel Brake Systems: Four-wheel brake systems require a two-circuit, tandem outlet master cylinder. Single outlet master cylinders must NOT be used in four-wheel brake applications.

Tech Insight

A single swing-mount pedal is the cleanest solution for clutch or brake systems where a balance bar is not required. The 7.0:1 ratio provides excellent leverage and pedal feel, while Wilwoods forged I-Beam arm resists flex under aggressive use. Proper master cylinder selection is criticalespecially on four-wheel brake systemsto ensure safety and correct hydraulic function.
