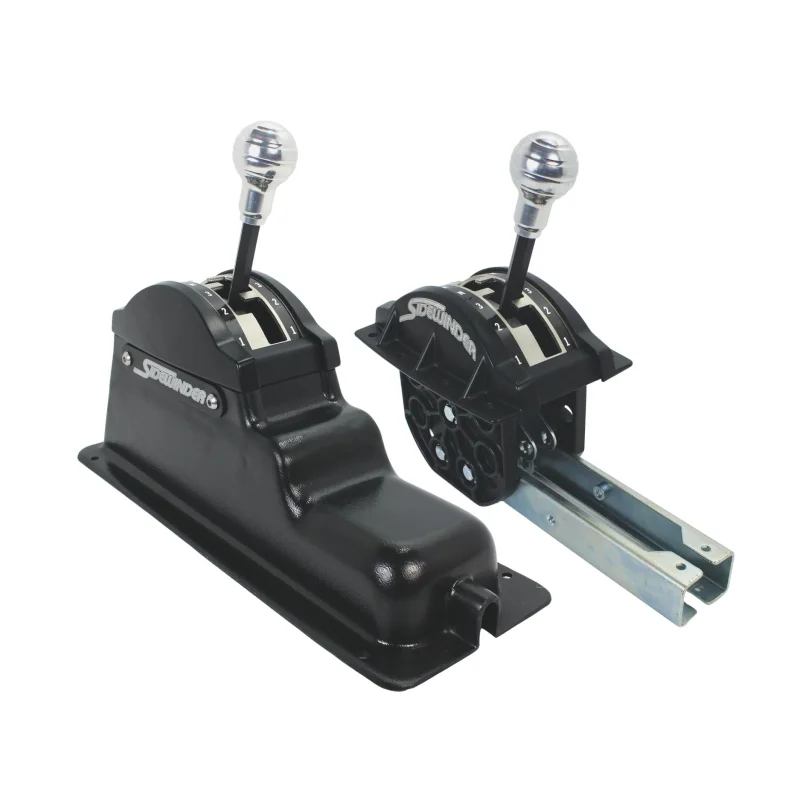

Winters SideWinder Shifter for 4L80ETransmission

Unlike standard shifters that rely on spring-loaded levers, theArt Carr - Winters SideWinder Shifter for 4L80E Transmission utilizes a mechanical guard bar and a stepped steel gate to govern gear selection. This design eliminates the risk of "jamming" common in spring-actuated systems and ensures positive gear engagement through physical stops.

The gate is engineered with a fail safe physical barrier that prevents the shift rod from entering the reverse gate from any forward gear. To reach reverse, the operator must intentionally navigate the rod through a specific offset in the steel gate, making an accidental shift into reverse mechanically impossible during high-speed forward operation.Each 4L80E shifter arrives fully assembled in its own console and includes the hardware you need to get it installed quickly.

4L80E Shifter Kit Includes:

• Fully assembled Winters SideWinder 4L80E Shifter
• 5 ft. shifter cable
• Shift linkage hardware
• Integrated steel safety guard

Specifications

• Model: 4L80E Winters SideWinder Automatic Shifter
• Guard Bar: Mechanical, fail-safe design
• Cable Length: 5 ft.
• Construction: Steel safety gate with Winters-engineered shift mechanism
• Operation: No springs, no levers, no jam points
• Installation: Includes cable & hardware

Fitment

• The Winters SideWinder Standard Shifter can be installed on:
• 4L80E

For those mounting the shifter into a custom center console or tube chassis, the Wide Open Design Shifter Mounting Brackets provide a rigid foundation that prevents shifter "flex" during aggressive gear changes. It is pre-drilled for a bolt-on fit with the Sidewinder housing.

Tech Insight

1. Why is the Winters SideWinder a good match for the 4L80E transmission?
The 4L80E is built for strength and heavy-duty use, commonly found in high-horsepower builds, tow rigs, and off-road applications. The Winters SideWinder complements it with a rugged mechanical gated design that delivers precise, repeatable shifts without the risk of missed gears.

2. Do I need a Standard Gate or Reverse Gate for my 4L80E?
Most factory-style 4L80E transmissions use a Standard Gate. If your transmission has been converted to a reverse manual valve body for racing or rock bouncing, youll need a Reverse Gate so the shift pattern matches the transmission internals.

3. Will the included 5-foot cable work for my setup?
In most front-engine applications, yes. The 5-foot heavy-duty cable works well for standard installs. For custom chassis, longer wheelbase rigs, or rear-engine setups, longer cable options are available to ensure smooth routing and operation.

4. How do I properly adjust the shifter for accurate gear engagement?
Set both the shifter and transmission in Neutral before adjusting the cable at the transmission bracket. Proper adjustment centers the throw and ensures full engagement across all gear positionsespecially important for the longer shift range of the 4L80E.
