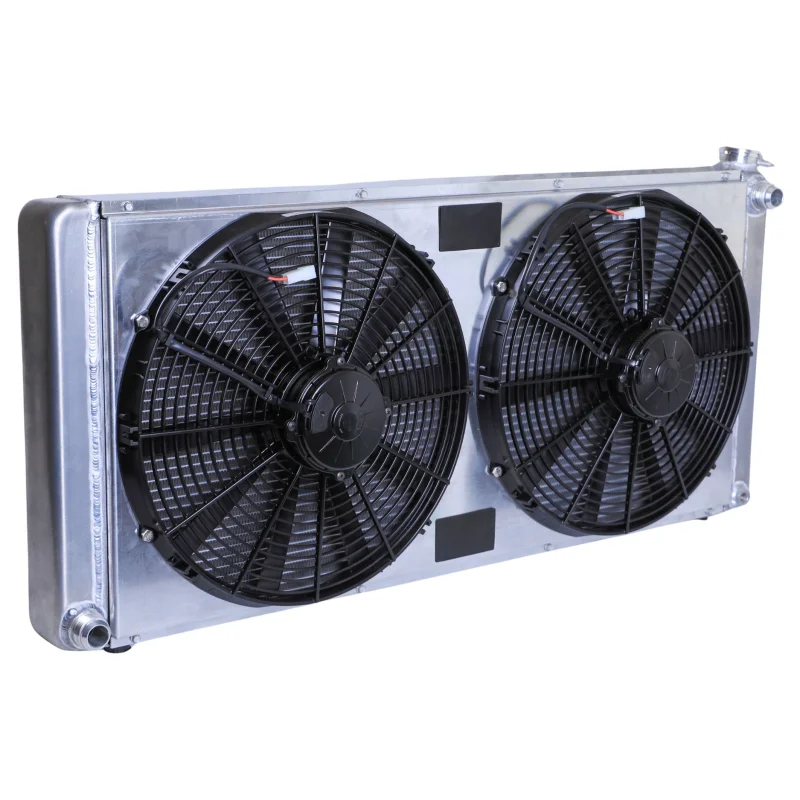

The WOD Race Radiator is a serious-duty cooling package built for high-horsepower off-road vehicles that cannot afford cooling problems. This 38" x 17" x 3" TIG-welded aluminum radiator has been proven by Wide Open Design for more than 15 years in some of the harshest motorsports conditions, including Ultra4 race cars, competitive rock bouncers, Rocketship Rockbouncer chassis builds, Revolution chassis builds, and custom tube chassis applications.

This radiator package is large, but the cooling capacity is the reason it works. From big block Chevy engines to small block combinations, LS swaps, LT engine platforms, and high-output race builds, this radiator has been used in vehicles built around extreme heat, low-speed crawling, long hill pulls, wide-open throttle abuse, and severe-duty off-road use. If you are building a high-horsepower buggy, rock bouncer, Ultra4 car, or custom chassis and need proven cooling performance, this WOD Race Radiator package is built for that job.

Included:

• WOD 38" x 17" x 3" TIG-welded aluminum race radiator
• Dual 16" SPAL puller fans
• Mounted fan shroud
• -16 upper radiator fitting
• -16 lower radiator fitting
• Petcock drain valve

Specifications

• WOD Part Number: CU-27714-05
• Product Category: Cooling Systems
• Radiator Size: 38" x 17" x 3"
• Radiator Construction: TIG-welded aluminum
• Core Style: High-efficiency cooling core
• Fan Quantity: 2
• Fan Brand: SPAL
• Fan Part Number: VA18-AP70/LL-86A / 30102120
• Fan Size: 16"
• Fan Configuration: Puller
• Blade Style: Straight blade
• Fan Voltage: 12V
• Airflow Per Fan: 1918 CFM
• Combined Fan Airflow: 3836 CFM
• Amp Draw Per Fan: 17.419.5 amps
• Fan Diameter: 15.75" overall
• Fan Depth: 3.45" / 88mm
• Upper Fitting: Straight -16, passenger side
• Lower Fitting: Straight -16, driver side
• Fill Cap Location: Passenger side
• Drain: Petcock drain valve included
• Intended Use: Severe-duty racing, rock bouncing, Ultra4, custom chassis, LS swaps, LT swaps, small block, and big block off-road applications

Fitment

• Universal fitment for custom off-road chassis applications
• Specifically fits Wide Open Design Rocketship Rockbouncer chassis applications
• Specifically fits Wide Open Design Revolution chassis applications
• Commonly used in Ultra4 race cars
• Commonly used in competitive rock bouncers
• Commonly used in custom tube chassis builds
• Suitable for high-horsepower LS engine combinations
• Suitable for LT engine combinations
• Suitable for small block Chevy engine combinations
• Suitable for big block Chevy engine combinations
• Note: Builder measurement required before ordering

Tech Insight

In extreme off-road applications, cooling problems usually happen when the vehicle is under the most load: slow technical climbs, long hill pulls, limited airflow, mud, dust, high ambient temperature, and repeated wide-open throttle abuse. This radiator package was chosen because it has the core size, fan power, coolant capacity, and durability needed for severe-duty use instead of just being a compact universal radiator.

The dual 16-inch SPAL puller fans provide a combined rated airflow of 3836 CFM, giving the radiator strong airflow support when vehicle speed is low or chassis airflow is restricted. The straight -16 upper and lower fittings make it easier to plumb into race cars, rock bouncers, and custom chassis builds that use AN-style coolant lines.
